Medical Oxygen Generator
Medical PSA oxygen generator designed for hospitals and clinics requiring stable on-site oxygen supply. Produces medical-grade oxygen (93%±3% purity) using advanced Pressure Swing Adsorption technology. Fully automatic PLC-controlled operation with real-time purity monitoring, intelligent alarms, and standby backup. Capacities from 1 to 300 Nm3/h. CE-certified, factory-tested, cost-effective alternative to cylinder supply.
- Details
- Technical Parameters
- Working Principle
- Advantages
- Applications
Medical Oxygen Generator Overview
This medical PSA oxygen generator is designed for hospitals and clinics that need a stable, on-site oxygen supply without relying on bottled deliveries. It produces medical-grade oxygen continuously, and the whole system runs automatically, so day-to-day operation is really straightforward for the staff.
Product Overview
This medical PSA oxygen generator is designed for hospitals and clinics that need a stable, on-site oxygen supply without relying on bottled deliveries. It produces medical-grade oxygen continuously, and the whole system runs automatically. Capacities range from 1 to 300 Nm³/h with oxygen purity of 93%±3%.
Application Scenarios
Suitable for general hospitals, emergency centers, isolation wards, ICUs, operating rooms, and small clinics. Anywhere that needs a steady supply of clean, reliable oxygen for patients — especially places where cylinder logistics are expensive or hard to manage.

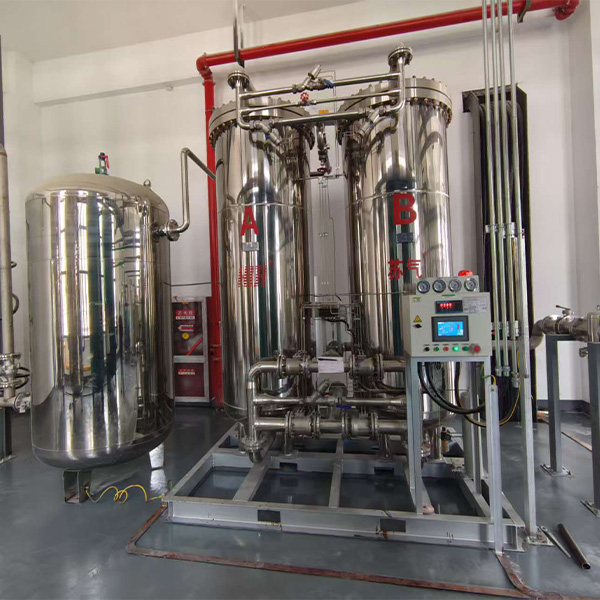

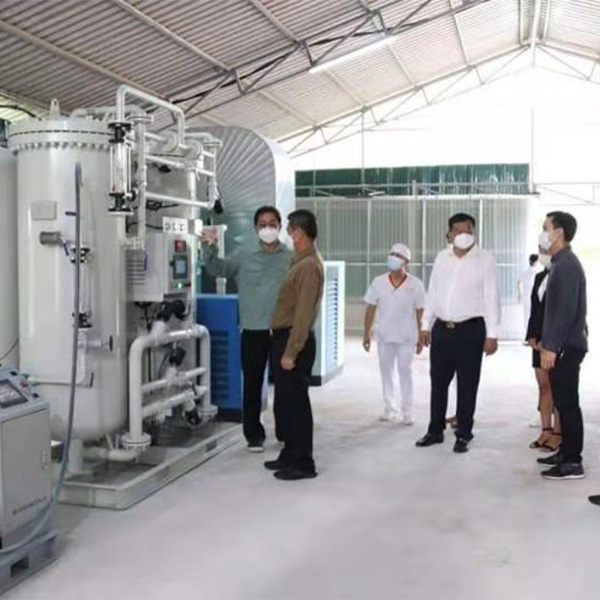

Medical Oxygen Generator in Hospital Application
Technical Advantages
- PSA Technology: Consistently maintains oxygen purity at medical standards (93%±3%)
- Real-time Monitoring: Monitors purity, pressure, and flow, self-adjusting without manual intervention
- Backup Functions: Automatic alarm for abnormalities; standby line kicks in to keep oxygen supply uninterrupted
Quality Control
Before leaving the factory, each machine goes through full medical-standard testing: purity verification, flow and pressure checks, leak tests, valve timing calibration. By the time it reaches the hospital, it has been run and checked under real conditions, ensuring quick installation and simple startup.
Medical Oxygen Generator System Diagram
Technical Parameters
HBF093 Series Medical Oxygen Generator
| Model | Gas Production (Nm3/h) | Air Consumption (Nm3/min) | Inlet DN (mm) | Outlet DN (mm) | L x W x H (mm) |
|---|---|---|---|---|---|
| HBF093-1 | 1 | 0.2 | DN15 | DN15 | 800x650x1720 |
| HBF093-3 | 3 | 0.6 | DN15 | DN15 | 1050x900x1865 |
| HBF093-5 | 5 | 1.0 | DN20 | DN15 | 1450x900x1825 |
| HBF093-10 | 10 | 2.0 | DN32 | DN15 | 1450x900x1825 |
| HBF093-20 | 20 | 4.0 | DN40 | DN25 | 1850x1025x2100 |
| HBF093-30 | 30 | 6.0 | DN50 | DN25 | 2000x1050x2530 |
| HBF093-50 | 50 | 10.0 | DN65 | DN25 | 2200x1250x2720 |
| HBF093-100 | 100 | 20.0 | DN100 | DN40 | 2500x1600x3330 |
| HBF093-200 | 200 | 40.0 | DN200 | DN40 | 5000x1600x3330 |
| HBF093-300 | 300 | 60.0 | DN250 | DN50 | 5900x1600x4520 |
Working Principle
Pressure Swing Adsorption (PSA)
The Medical Oxygen Generator operates on the Pressure Swing Adsorption (PSA) principle, a proven technology for separating oxygen from compressed air.
- Air Compression: Ambient air is compressed and passes through filters to remove moisture, oil, and particulates.
- Air Drying: Filtered compressed air enters a refrigeration dryer and adsorption dryer to achieve low dew point.
- PSA Adsorption: Dry clean air enters adsorption towers filled with zeolite molecular sieve. Under pressure, nitrogen is adsorbed while oxygen passes through as product gas.
- Regeneration: When the adsorption tower reaches saturation, the system switches to the standby tower and depressurizes the saturated tower to release adsorbed nitrogen.
- Oxygen Output: Medical-grade oxygen (93%±3%) is delivered to the hospital pipeline system or oxygen storage tanks.
Technical Advantages
- Medical-Grade Purity: PSA technology delivers consistent oxygen purity of 93%±3%, meeting medical standards for patient care.
- Fully Automatic: Real-time monitoring of purity, pressure, and flow; system self-adjusts without manual intervention.
- Intelligent Alarm System: Automatic alerts for pressure, purity, and temperature anomalies; standby line automatically activates to maintain uninterrupted oxygen supply.
- Cost-Effective: Eliminates recurring costs of cylinder delivery, rental fees, and logistics. Lower long-term operating cost compared to bottled oxygen.
- Factory Tested: Each machine undergoes full medical-standard testing before delivery: purity verification, flow and pressure checks, leak tests, valve timing calibration.
Application Scenarios
Suitable for a wide range of healthcare facilities and medical environments:
- General Hospitals: Provides reliable central oxygen supply for all departments, eliminating dependency on cylinder logistics.
- Emergency Centers: Ensures uninterrupted oxygen availability for emergency and trauma care.
- Isolation Wards: Dedicated oxygen supply for infectious disease isolation units without cross-contamination risks.
- Intensive Care Units (ICUs): Stable, high-purity oxygen for critically ill patients requiring continuous respiratory support.
- Operating Rooms: Reliable oxygen source during surgical procedures where gas quality and consistency are critical.
- Small Clinics: Compact, economical on-site oxygen generation for smaller healthcare facilities.
