Containerized PSA Oxygen Generator（Cylinder Filling）

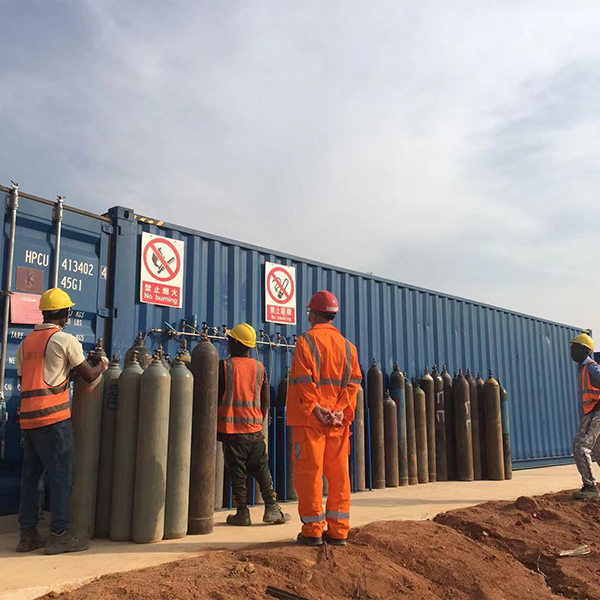

Containerized PSA oxygen generator for cylinder filling — a fully integrated, plug-and-play oxygen plant packed inside a standard shipping container. The system combines air compressor, purification, PSA oxygen generator, oxygen booster, and filling manifold in one unit. It delivers medical-grade oxygen (93% ± 3%) directly into cylinders on site. Safe, simple, 24-hour automated operation with fast investment recovery. Ideal for hospitals, clinics, mining sites, fish farms, and remote industrial facilities.
- Details
- Technical Parameters
- Working Principle
- Advantages
- Applications
Product Overview
This containerized oxygen system is basically a plug-and-play oxygen plant. Everything — the PSA oxygen generator, the air system, the booster, and the filling manifold — is already packed inside a standard container. You drop it on-site, hook up power, and you’re pretty much ready to start filling cylinders. No extra construction, no complicated setup.
Application Scenarios
People use this setup anywhere they need reliable on-site oxygen without building a full plant. Small hospitals, clinics, emergency projects, mining sites, fish farms, industrial workshops — anywhere that needs oxygen bottles on hand. It’s especially convenient for remote locations where oxygen delivery is a headache.
Technical Advantages

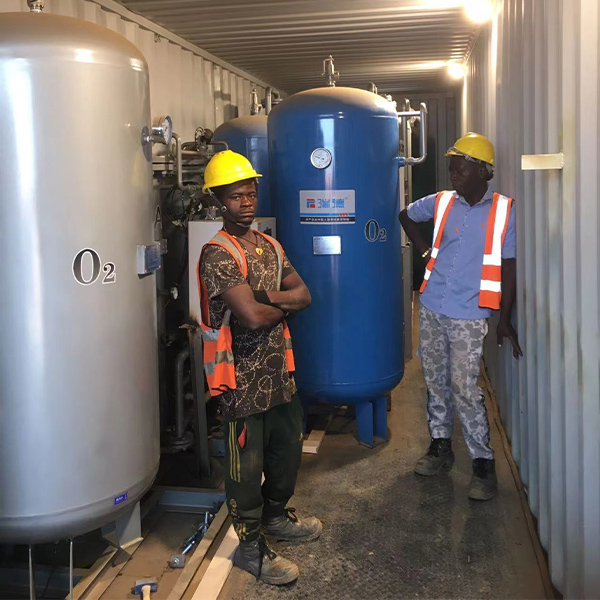

The oxygen generator runs on PSA technology, so purity stays steady and the system doesn’t need constant adjustments. The container keeps everything protected from weather, and the layout inside is neat: compressors, dryer, filters, oxygen generator, booster, filling ramp — all where they should be. The booster brings oxygen pressure up to cylinder-filling levels without stressing the system, and the whole thing is controlled automatically.
Quality Control
Before it ships out, the entire container is tested as a complete unit. We run the system, check oxygen purity, leak-test the filling lines, verify pressure stability, and simulate actual bottle filling. So when it arrives, you’re not troubleshooting — you’re producing oxygen from day one.
Service Advantages
If anything comes up, it’s usually easy to sort out. Most customers only need a quick video call. Spare parts are standard, and the system is built in a way that operators can do routine maintenance without special tools. The containerized design also means everything is organized and accessible — no crawling around machines to find valves.
Company Advantages
We’ve built a ton of these containerized units, so the design is well-proven. Because we handle the air system, PSA unit, and the filling setup ourselves, we control the quality from start to finish. Lead times are predictable, and the support stays consistent because you’re dealing with one team. It’s all about making oxygen production easy and dependable.
Oxygen Generator Diagram
| Parameter | Specification |
|---|---|
| Model Series | WG-CON-O2 Series |
| Technology | Pressure Swing Adsorption (PSA) |
| Oxygen Purity | 93% ± 3% (medical grade) |
| Oxygen Flow Range | 5 – 100 Nm³/h (customizable) |
| Filling Pressure | Up to 150 bar (cylinder filling) |
| Container Type | Standard 20 ft / 40 ft shipping container |
| Power Supply | 380V / 50Hz 3-phase (customizable) |
| Control System | PLC automatic control with touch screen |
| Molecular Sieve | Lithium-based zeolite (Li-X) |
| Air Compressor | Screw type, built-in |
| Coverage | Complete air treatment + oxygen generation + booster + filling ramp |
| Ambient Temperature | 0°C – 45°C |
| Noise Level | ≤ 75 dB(A) at 1 m |
Working Principle: Pressure Swing Adsorption (PSA)
The system uses PSA (Pressure Swing Adsorption) technology with high-performance lithium-based zeolite molecular sieves to separate oxygen from compressed air.
- Air Intake & Purification: Ambient air is drawn in, compressed by the built-in screw air compressor, then passed through a series of filters and an air dryer to remove moisture, oil, and particulates.
- Adsorption (Oxygen generation): Clean compressed air enters the PSA towers. The zeolite molecular sieve selectively adsorbs nitrogen under pressure (typically 4–6 bar), allowing oxygen (93% ± 3%) to pass through as the product gas.
- Desorption (Regeneration): When the sieve reaches saturation, pressure is released. The adsorbed nitrogen is vented to the atmosphere, regenerating the molecular sieve for the next cycle. Two towers alternate between adsorption and desorption to provide a continuous oxygen supply.
- Oxygen Buffering & Boosting: Product oxygen is collected in a buffer tank for stable output, then compressed by an oxygen booster to high pressure (up to 150 bar) suitable for filling cylinders.
- Cylinder Filling: High-pressure oxygen is directed to the filling manifold where multiple cylinders can be filled simultaneously. The system automatically manages fill pressure and shut-off.
| # | Advantage |
|---|---|
| 1 | The filling and bottle filling oxygen generator is safe and simple to operate, saves the trouble of manual bottle replacement, operates at full load for 24 hours, has fast investment recovery, low equipment noise, and long service life. |
| 2 | Provide clean raw air for the oxygen generator through the air purification component, ensuring the adsorption efficiency and service life of molecular sieve. |
| 3 | The air storage tank assembly ensures the stable gas consumption of the system. |
| 4 | Oxygen buffer tank ensures stable gas supply to the system. |
| 5 | International famous brand valves (Burkert, Gumu, Germany) are selected, Japan (SMC, CKD, etc.) is a reliable guarantee for the stable operation of PSA equipment. |
| 6 | The unique pressing technology is a reliable guarantee for the service life of molecular sieve. |
| 7 | The pressing force is constant and does not change with the change of stroke. |
| 8 | The cylinder is equipped with indicator rod, which can directly measure the stroke. |
| 9 | With sinking alarm and limit shut down function. |
| 10 | The gas required by the cylinder is directly taken from the adsorption tower, which can work synchronously with the adsorption tower at any time. |
| 11 | Testing process in strict accordance with standards, ensuring each equipment leaving the factory is safe, reliable, and stable. |
| Application | Description |
|---|---|
| Small Hospitals & Clinics | Reliable on-site oxygen supply for patient wards, ICUs, and emergency rooms — eliminating dependency on delivered bottled oxygen. |
| Emergency & Disaster Relief | Rapid deployment containerized unit provides medical oxygen in crisis zones, temporary hospitals, and field operations. |
| Mining & Industrial Sites | Oxygen enrichment for smelting, welding, cutting, and industrial processes at remote mining and construction locations. |
| Aquaculture & Fish Farms | Dissolved oxygen supplementation for high-density fish farming, shrimp ponds, and aquatic hatcheries. |
| Remote Communities | Decentralized oxygen production for rural health centers and community clinics where cylinder logistics are costly or impractical. |
| Military & Field Hospitals | Mobile oxygen generation in forward operating bases, field medical tents, and disaster response units. |
| Industrial Workshops | On-demand oxygen for glass blowing, metal fabrication, chemical processes, and water treatment applications. |
