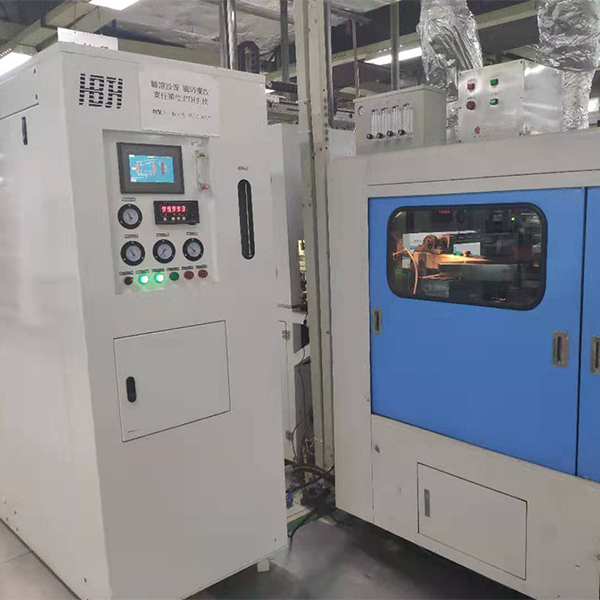

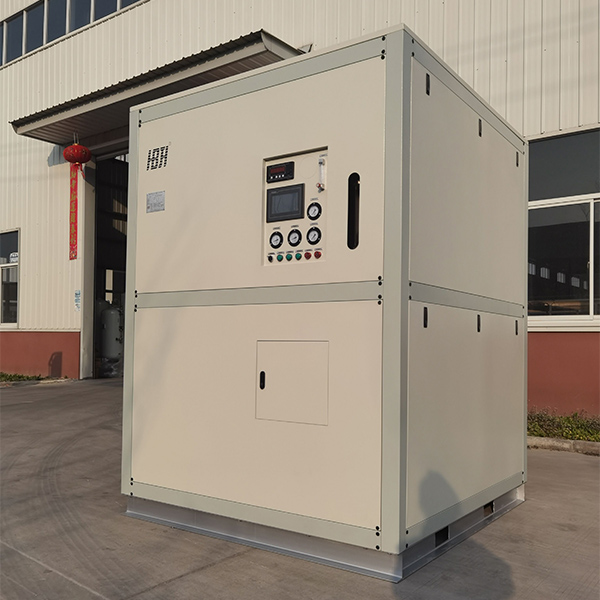

Box-type Nitrogen Generator
The Box-type Nitrogen Generator is a fully integrated Pressure Swing Adsorption (PSA) system that produces high-purity nitrogen directly from compressed air. Housed in a compact closed box, it delivers 90% to 99.999% purity with one-touch adjustment. Featuring blizzard-packed molecular sieve (3-5 year lifespan), low energy consumption (0.3-0.8 kW·h/Nm³), and quick startup, this cost-effective on-site solution eliminates liquid nitrogen delivery and high-pressure cylinder storage, ideal for electronics, food packaging, pharmaceutical, and industrial applications.
- Details
- Technical Parameters
- Working Principle
- Advantages
- Applications
Product Introduction
- Raw Material: Natural air taken from nature. Nitrogen can be produced by supplying compressed air and power.
- Adjustable Purity: Nitrogen purity can be adjusted conveniently between 90% and 99.999% via touch screen.
- High Automation: Fast gas production, can be unattended. Qualified gas within 10-30 min of first startup, 3-10 min afterwards.
- Simple Process: Small footprint, low energy consumption and cost.
- Online Inspection: Imported analyzer, high accuracy, maintenance-free.
- Blizzard Packing: Molecular sieve filled by snowstorm method to avoid pulverization and ensure long service life.
Core Technology: Box-integrated PSA Precision Separation System
The Pressure Swing Adsorption (PSA) nitrogen generator is an automated device that uses carbon molecular sieve as adsorbent. It adsorbs oxygen from the air based on pressurization adsorption and depressurization desorption to separate nitrogen. All functional modules are highly integrated into a closed box. When compressed air is connected, it enters the built-in air pretreatment system (precision filters and refrigerated dryers) to remove dust, oil and moisture, ensuring the air meets "oil-free, water-free and dust-free" standards.
The device is equipped with two adsorption towers inside the box, automatically controlled by the PLC system to alternately perform the adsorption-desorption cycle, realizing continuous nitrogen production. The closed box structure reduces interference from external dust and moisture, keeps the equipment neat, and complies with 5S workshop management standards.
Raw Material Advantage: Zero Restriction
- No procurement cost: No need to purchase chemical raw materials, completely avoiding expenditure on liquid nitrogen and bottled nitrogen.
- No storage risk: No dangerous storage containers (cryogenic tanks, high-pressure cylinders), avoiding safety hazards such as low-temperature frostbite and gas cylinder explosion.
- No supply restriction: Air is an unlimited raw material, unaffected by logistics or supplier capacity, ensuring continuous production even in extreme weather.
Flexible Purity: One-click Adjustment
Supports flexible adjustment from 90% to 99.999% via touch screen, without disassembling the box:
- 90-95% purity: Basic purging, simple industrial protection, ordinary packaging filling
- 99.5-99.9% purity: Electronic component packaging, plastic injection molding, food preservation
- 99.99-99.999% purity: Semiconductor wafer lithography, pharmaceutical sterile preparations, high-end chemical raw material storage
Economical & Practical
- Compact footprint: 2-6 sqm, flexible workshop placement
- Low energy consumption: 0.3-0.8 kWh/Nm3, much lower than traditional methods
- Quick installation: 1-2 days on-site deployment, no complex infrastructure required
- Cost saving: 30-50% lower operating cost than purchased liquid nitrogen
- Extended sieve life: 3-5 years with blizzard packing method and closed box protection
Technical Parameters — HBFD Series (Box Nitrogen Generator)
| Model | N₂ Purity | N₂ Production (Nm³/h) |
Effective Air Consumption (Nm³/min) |
Inlet Pipe Size (DN) |
Outlet Pipe Diameter (DN) |
Dimensions L×W×H (mm) |
|---|---|---|---|---|---|---|
| Piping | ||||||
| HBFD-129 | 99% | 5.5 | 0.19 | DN15 | DN15 | 800×650×1240 |
| 99.5% | 4.5 | 0.18 | ||||
| 99.9% | 3 | 0.15 | ||||
| 99.99% | 1.5 | 0.11 | ||||
| 99.999% | 1 | 0.09 | ||||
| HBFD-229 | 99% | 8.5 | 0.30 | DN15 | DN15 | 800×650×1720 |
| 99.5% | 6 | 0.24 | ||||
| 99.9% | 4.5 | 0.23 | ||||
| 99.99% | 3 | 0.22 | ||||
| 99.999% | 1.5 | 0.14 | ||||
| HBFD-329 | 99% | 20 | 0.70 | DN15 | DN15 | 950×950×1500 |
| 99.5% | 16 | 0.65 | ||||
| 99.9% | 11.5 | 0.58 | ||||
| 99.99% | 6.5 | 0.47 | ||||
| 99.999% | 4.5 | 0.42 | ||||
| HBFD-429 | 99% | 30 | 1.05 | DN20 | DN15 | 1050×900×1870 |
| 99.5% | 25 | 1.02 | ||||
| 99.9% | 18 | 0.91 | ||||
| 99.99% | 10 | 0.72 | ||||
| 99.999% | 7 | 0.65 | ||||
| HBFD-529 | 99% | 55 | 1.93 | DN25 | DN15 | 1150×1130×2010 |
| 99.5% | 45 | 1.83 | ||||
| 99.9% | 33 | 1.66 | ||||
| 99.99% | 20 | 1.44 | ||||
| 99.999% | 13 | 1.21 | ||||
| HBFD-629 | 99% | 30 | 1.05 | DN20 | DN15 | 1360×1100×1870 |
| 99.5% | 25 | 1.02 | ||||
| 99.9% | 18 | 0.91 | ||||
| 99.99% | 10 | 0.72 | ||||
| 99.999% | 7 | 0.65 | ||||
| HBFD-729 | 99% | 75 | 2.63 | DN25 | DN20 | 1250×1250×2010 |
| 99.5% | 60 | 2.44 | ||||
| 99.9% | 45 | 2.27 | ||||
| 99.99% | 28 | 2.02 | ||||
| 99.999% | 20 | 1.87 | ||||
| HBFD-839 | 99.9% | 65 | 3.27 | DN40 | DN25 | 1500×1350×2200 |
| 99.99% | 40 | 2.88 | ||||
| 99.999% | 26 | 2.43 | ||||
| HBFD-939 | 99.9% | 80 | 4.03 | DN40 | DN25 | 1500×1350×2200 |
| 99.99% | 48 | 3.46 | ||||
| 99.999% | 33 | 3.08 | ||||
| HBFD-1039 | 99.9% | 90 | 4.53 | DN40 | DN40 | 1550×1450×2200 |
| 99.99% | 55 | 3.96 | ||||
| 99.999% | 38 | 3.55 | ||||
| HBFD-1139 | 99.9% | 140 | 7.7 | DN40 | DN40 | 1750×1850×2350 |
| 99.99% | 80 | 5.2 | ||||
| 99.999% | 50 | 4.8 | ||||
| HBFD-1239 | 99.9% | 170 | 9.4 | DN50 | DN40 | 1850×1900×2450 |
| 99.99% | 100 | 6.5 | ||||
| 99.999% | 60 | 5.8 | ||||
Note: Specifications subject to change without notice. Contact us for customized configurations.
Working Principle
The Box-type Nitrogen Generator operates on the Pressure Swing Adsorption (PSA) principle. Using carbon molecular sieve (CMS) as the adsorbent, the system separates nitrogen from compressed air by exploiting the different adsorption rates of oxygen and nitrogen molecules.
Oxygen molecules diffuse faster and are adsorbed into the micropores of the CMS under pressure, while nitrogen molecules pass through and are collected as product gas. When the adsorption tower reaches saturation, the system depressurizes to release the adsorbed oxygen, regenerating the molecular sieve for the next cycle.
Dual-Tower Alternating Cycle
The equipment has two adsorption towers inside the box, controlled by PLC to alternately perform adsorption and regeneration. This ensures continuous, stable nitrogen supply with purity adjustable from 90% to 99.999%.
Advantages
I. Core Technology: Box-integrated PSA Precision Separation
All functional modules are pre-installed in the box. On-site installation only requires connecting compressed air pipeline and switching on power. The closed structure of the box reduces interference from external dust and moisture, complying with 5S management standards.
II. Raw Material Advantage: Zero Restriction
No procurement cost, no storage risk from cryogenic tanks or high-pressure cylinders, and no supply restriction. Air is an unlimited raw material, unaffected by logistics.
III. Flexible Purity: One-click Adjustment
Supports flexible adjustment from 90% to 99.999% via touch screen without disassembling the box.
IV. Economical & Practical
Compact footprint (2-6 sqm), energy consumption only 0.3-0.8 kWh/Nm3, installation within 1-2 days. 30-50% lower operating cost than purchased liquid nitrogen.
V. Extended Molecular Sieve Life
Blizzard packing method and closed box protection extend sieve life to 3-5 years.
Applications
The Box-type Nitrogen Generator is widely used across multiple industries due to its compact design, flexible purity adjustment, and economical operation:
- Electronics Manufacturing: SMT industry, semiconductor wafer lithography inert protection, anti-oxidation for electronic component welding
- Food Industry: Inflatable packaging of puffed food (anti-oxidation and moisture-proof), modified atmosphere preservation of fruits and vegetables
- Pharmaceutical Industry: Inert atmosphere protection in pharmaceutical production workshops, filling protective gas for sterile preparations
- Chemical Industry: Reaction protection gas, pipeline purging, tank blanketing
- Metal Processing: Heat treatment, brazing, sintering oxidation protection
